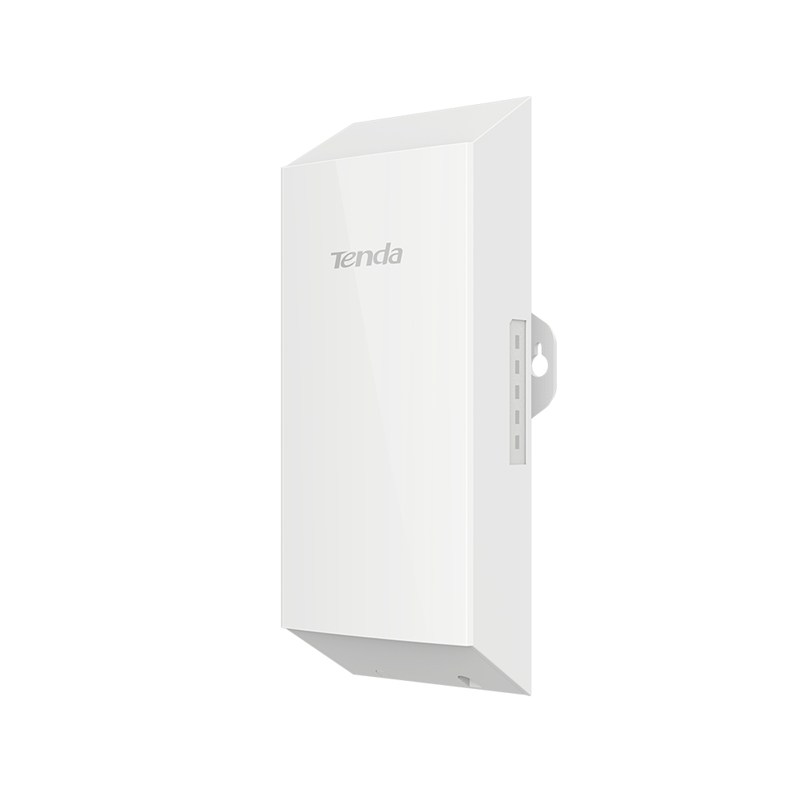

Tenda o1 - Wireless 2.5GHz 300Mbps Outdoor Access Point

Item Code : Tenda - o1



Product Details

Tenda™   WiFi Access Points Outdoor

Tenda - Tenda o1 - Wireless 2.5GHz 300Mbps Outdoor Access Point

Item Code: Tenda - o1

Brand: Tenda

Manufacturer: Tenda

Tenda - o1

Description

This outdoor wall or Pole mounted Wireless Access Point (WiFi Transmitter/Receiver) model Tenda o1 is a stable and easy-to-use wireless access point also allows wireless Point to Point systems of upto 500 Meters. It is suitable for WIFI coverage in outdoor areas in hotels, small and medium in size, bars, cafes, large houses, WiFi for the Garden. The Tenda o1 operates in the 2.4GHz band with wireless speeds of up to 300Mbps. The 01 has a 8dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 500 Meters. With the Simple design and elegant appearance, it can be directly installed on to walls or Mast Mounted. The o1 can also be implemented in Commercial WISP CEP Systems.

Features

  • 2.4GHz 11n 300Mbps
  • 8dbi directional antenna
  • IP64 waterproof enclosure
  • AP,Station,WISP operating mode supported
  • Up to 30 meters of flexible deployment with included PoE Injector

Specification

Specification
Dimension190.35*80*67.5mm
SSID Hidden
Mounting Pole Mount
wall Mount
Wireless Client isolationLong range video surveillance
data transmission and WISP CPE
Frequency Rang2.4GHz
Wireless Link Rate300Mbps
AntennaAntennas Gain:8dbi
Beamwidth:Horizontal: 60°
Vertical: 30°
Button1*Reset Button
Maximum Power Consumption2.6W
Waterproof LevelIP64
LED PoE/LAN
WiFi
LED1
LED2
LED3
Power MethodDC or
Passive PoE
Passive PoE power supplyPassive power over ethenet via PoE/LAN (+4,5pins -7,8pins) up to 30 meters
Input Voltage 9-12V DC
Reception SensitivityMCS0: -92dbm
MCS7: -72dbm
Operating ModeAP/Station/WISP
Standard&ProtocolIEEE 802.11b/g/n
APSD CapableSupport
VLAN Tagging for SSIDSupport
Backup/Restore ConfigurationSupport
Username ManagermentSupport
TypeSupport
ColourSupport
Retardation deviationSupport
Transmit PowerAdjustable power by 1dBm
MaterialSupport
SizeSupport
Wireless Security64/128 WEP
WPA-PSK
WPA2-PSK
WPA&WPA2-PSK
WPA
WPA2
SSID IsolationSupport
PackingSupport
DHCP Server Support
VPN Pass-throughPPTP
L2TP
Remote Web accessSupport
Schedule RebootSupport
Page TimeoutSupport
Ping WatchdogSupport
Dyndns
oip
dyndns.org
Network Diagnoses Ping
Traceroute
Signal Scan
Maximum Power ConsumptionSupport
Firmware UpgradeSupport
Client Limitation For SSIDSupport
Wireless Access ControlSupport
SyslogSupport
Managed By ControllerPC Software -- CPE Assitant
Package Content1*Outdoor Point to Point CPE
1*Power Adapter
1*PoE Injector
2*Plastic Staps
1*Quick Installation Guide
TemperatureOperating Temperature:-30℃ ~ 55℃
Storage Temperature:-40℃ ~ 70℃
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Default SettingsDefault login IP:192.168.2.1
Default Login Username:admin
Default Login Password:admin
CertificationFCC
CE
RoHS
