Global Invacom™   Optical Fibre TV - Full Band LNB

Global Invacom - Optical TV - Satellite Fullband Stacking LNB, Global Invacom F926013

Item Code: F926013

Brand: Global Invacom

Manufacturer: Global Invacom


Description

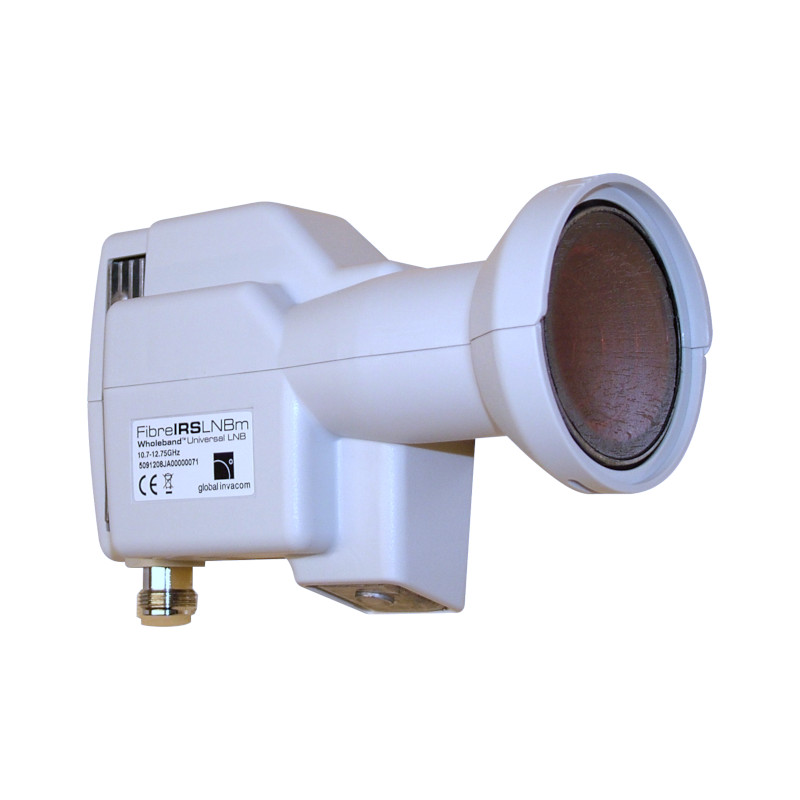

Globle Invacom F926013 Stacking LNB

The Wholeband LNB uses patented technology to frequency stack horizontal and vertical polarities, creating a single satellite IF frequency range of 950MHz to 5450MHz. Single is output via an ‘N’ connector and HF Interconnect cable for connection to the ODU32

Features

  • Downconvertion of Ku-Band DVB-S signals of 2 polarities (4 Quadrants) into Sat-IF and stacked into one combined RF signal in the frequancy range 950 to 5450 MHz.
  • Designed to feed directly to Fibre IRS ODU32 or a professional headend.

Specification

LNB type Mini Univesal-Wholeband LNB
Input frequency range 10.70-12.75 GHz
Output frequency range 950-5450 MHz
Output impedance 50 ohm
Noise figure (typical at 25 deg. C ) 0.7 dB
Noise figure (max. at 25 deg. C ) < 1.1 dB
Noise figure (typical -30 to +60 deg. C) 0.9 dB
Noise figure (max -0 to +60 deg. C ) <1.3 dB
Return Loss >9 dB
Conversion gain (typical at 25 °C) 63 dB
Gain variation (-30 to +60 °C) +2 dB
Gain flatness (0.95 to 5.45 GHz) 6 dB
Gain ripple (per 27 MHz bandwidth segment) <1 dB
L.O. Frequency vertical 9.75 GHz
L.O Frequency horizontal 7.30 GHz
