Item Code : RF Line Power Supply 12V 100mA - PSUFC
Special Notice: None
Special Notice: None
Product Details
Power Supplies
Labgear - PSUFC
Item Code: RF Line Power Supply 12V 100mA - PSUFC
Brand: Labgear
Manufacturer: Labgear

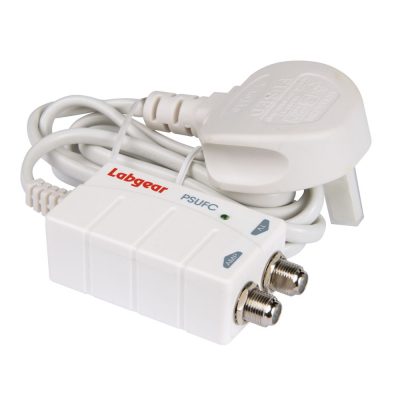

RF Line Power Supply 12V 100mA - PSUFC
Description
The PSUFC is a 12VDC regulated power supply ideal for powering any masthead amplifier, or a number of masthead amplifiers in cascade, or other line powered amplifiers providing the total current demand is not more than 300mA.
Designs independently certified to relevant safety standard BS EN 60065.
Features
- The power supply complies with the ErP (Energy Related Products) Directive.
- DC output: 12VDC – Voltage tolerance 5% – Current 300mA max
- Connector type: Type-F (female) IEC60169-24
- Signal frequency range: 5…1000MHz
- Signal insertion loss: 0.5dB
- Power requirement under load: 230V~50Hz max. 5W
- Power requirement under no load: 230V~50Hz at <0.3W
- Power indicator: Green LED
Specification
| Product Code | PSUFC | |
| Input | one | |
| Output | one | |
| Coax Connector Type | Type-F (female) IEC60169-24 | |
| Insertion Loss | 0.5dB | |
| Power: | Output Voltage: 12Volts +- 2.5% | |
| Maximum Current: 300mA | ||
| Power Indicator | Green LED | |
| Signal Frequency Range | 5-1000MHz | |
| Mains Plug | fitted with UK Plug of rectangular pins to BS1363 | |
| Applications | Power Supply for Mast Head Amplifiers. | |
| Operating Temperatur | 0…40ºC | |
| Dimensions: | Length - 72.7mm | |
| Width - 35.5mm | ||
| Hieght - 24.7mm |
