LTE QR12 T, 17 Element Full Wave Yargi TV Aerial,

Item Code : 108169 - LTE QR12 T



Product Details

Wolsey™   Terrestrial TV Aerial

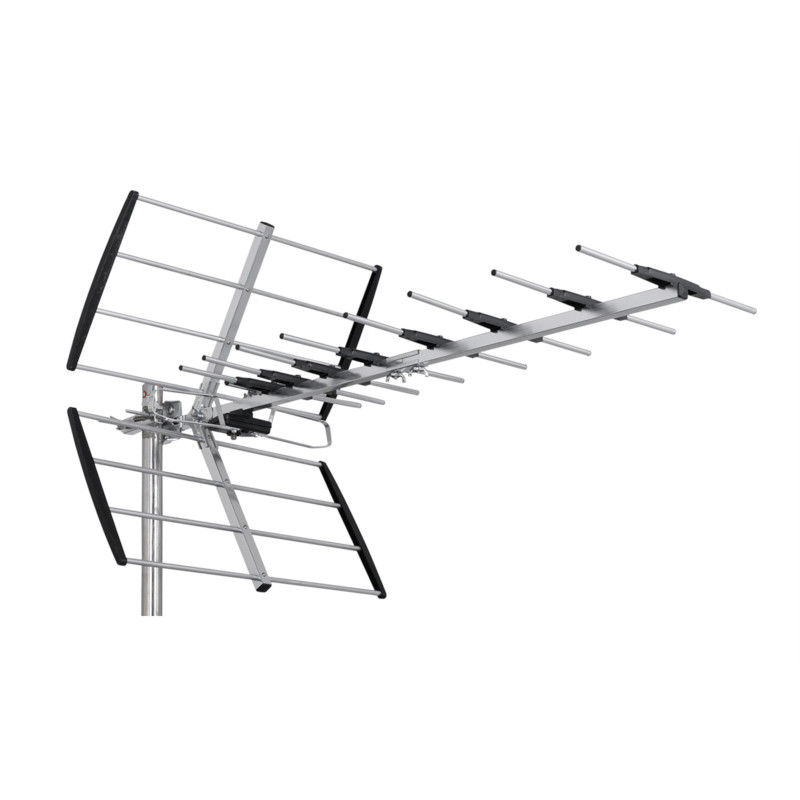

Wolsey - LTE QR12 T, 17 Element Full Wave Yargi TV Aerial,

Item Code: 108169 - LTE QR12 T

Brand: Wolsey

Manufacturer: Triax

LTE QR12 T

Description

This Full Wave Yargi TV Aerial Modal QR12 is of high gain with compact design. This TV Aerial can be assembled without Tools with features of 'Quick lock' dipole and reflector. Its strong, rugged construction ensures a long service life, the coax cable connection to the TV Aerial is made to the F-Connector dipole housing. The TV aerial hasexcellent Front to Back Ratio and performance across the whole of the UHF band.

Features

  • Frequency: 470...790 MHz
  • Channel: 21-60 (wideband)
  • Impedance: 75ohm
  • Number of Elements: 17
  • Gain: 14 dBi
  • Front to back ratio: >20..26dB
  • Length: 1010mm

Specification

ORDER INFORMATION
EAN Number 5702661081699
CHARACTERISTICS
Type QR 12 T
FREQUENCY
Band B IV/V UHF
Channels 21...60
Frequency range UHF 470...790 MHz
LTE protection 800
GAIN
Gain 14 dBi
LOSS
Rejection @ 821 MHz (LTE D6) <2.14dBi dB
ELECTRICAL
Front to back ratio - horisontal >20...26 dB
Impedance 75 Ω
CONNECTORS
Connector Type F-female
MECHANICAL
Elements 12
Beamwidth horisontal ± 18 °
Bracketry Rear Mount
Construction type Quick Lock Relector
Main material Aluminium
Individual brown box 1
Product Length 1010 mm
Product Width 555 mm
Packing QTY 1
Net Weight 1,520 kg
Total Weight 1,520 kg
