Topaz TV Radio Launch Amplifier 34dB
Item Code : 371002
Product Details
Terrestrial Launch Amplifiers

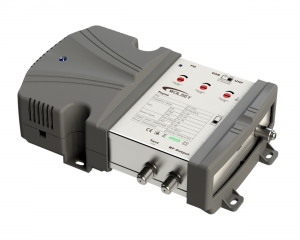

Wolsey - Topaz TV Radio Launch Amplifier 34dB
Item Code: 371002
Brand: Wolsey
Manufacturer: Triax
371002
Description
The Topaz Launch Amplifier has a gain of 30dB with output power of 115dBuVolts
There are 3 filtered inputs specifically tuned for the services of :-
- FM Radio, 88 to 108 MHz.
- DAB Radio, 217 to 230MHz
- UHF TV, 470 to 790MHz
The UHF TV input is capable of powering a pre-Amplifier.
Features
- Multiband Amplifier
- Variable Gain Control 0-20 dB on All Inputs
- Switchable Filtering Control
- Masthead Line Power Supply with Short Circuit Protection
- Test -30dB
- Earth Bonding Point
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663710023 |
| CHARACTERISTICS | |
| Max. output level | 115dBuV dBµV |
| Test point | -30dB dB |
| FREQUENCY | |
| Frequency range | 88...862 MHz |
| Frequency range DAB | 217-230 MHz |
| Frequency range FM | 88...108 MHz |
| Frequency range UHF | 470-790 MHz |
| GAIN | |
| Gain | 30 (FM/DAB) dB |
| Gain - UHF | 34 dB |
| Noise figure VHF | 6dB dB |
| Noise figure UHF | 4dB dB |
| LOSS | |
| Attenuation - adjustable | 0-20 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LINE power DC voltage (max.) | 12 Switchable VDC |
| AC Supply voltage | 230 / 50Hz VAC |
| Power Consumption (typ.) | 5 W |
| LINE power current (max.) | 100 mA |
| LED indicator | Yes |
| CONNECTORS | |
| Number of inputs | 3 |
| Number of outputs | 2 (Full and Test) |
| Connector Type | F-female |
| MECHANICAL | |
| Product Length | 190 mm |
| Product Width | 135 mm |
| Product Depth | 55 mm |
| Packing QTY | 1 |
| Net Weight | 0,790 kg |
| Tara Weight | 0,100 kg |
| Total Weight | 0,890 kg |
| Remarks | Screened AmplifierSwitchable LTE filter |
