Technomate - 200 x 200mm short Arm TV Wall Bracket

Item Code : TM-1342



Product Details

Technomate™   TV Wall Brackets, Swivel and Tilt

Technomate - Technomate - 200 x 200mm short Arm TV Wall Bracket

Item Code: TM-1342

Brand: Technomate

Manufacturer: Technomate

Description

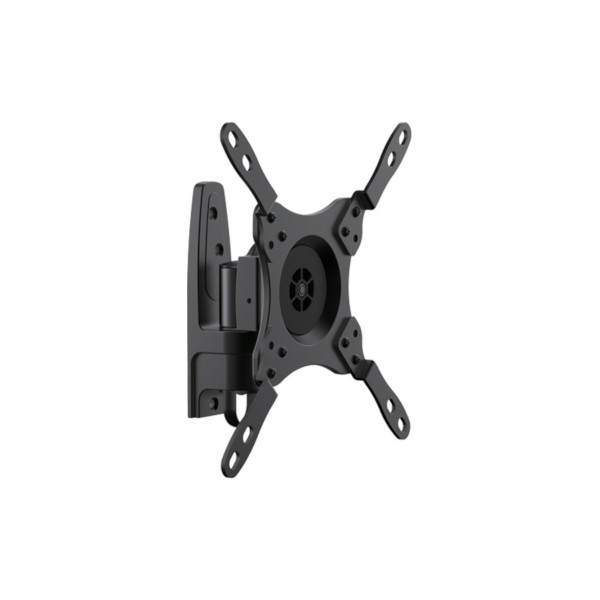

The TM-1342 is a low profile swivel & tilt TV bracket for LCD, Plasma, LED TVs & Monitors. The bracket places the TV 97mm from the wall.

You can tilt the bracket from +15° to -15° to adjust your TV 's angle as well as swivel it between +40° to -40°.

Universal mounting pattern fits virtually any 13"-42" flat-panel TV and monitor.

With 360° rotation, you can adjust the TV or monitor in Portrait or Landscape viewing modes.

The sleek cable management system keeps cables hidden and neat.

The slide-in VESA plate makes install easier to mount/dismount the bracket.

There's also an anti-theft system (requires padlock).

The TV to bracket fixing screws provided are, 4 x M4 14mm, 4 x M5 14mm, 4 x M6 14mm, 4 x M8 20mm ( caution: select screws as required by your TV Screen; other sizes may be required that are not supplied ? )

Features

  • Slim 13"-42" TV Bracket
  • Tilt: +15° to -15°
  • Swivel: +90° to -90°
  • Rotation: 360° (Portrait or Landscape Viewing)
  • Slide-in VESA plate to easily mount/dismount the bracket
  • Distance to Wall: 92 - 258mm
  • Max VESA: 200mm x 200mm
  • Max Weight: 20kg
  • Cable management
  • Anti Theft (requires padlock)

Specifications for TV Wall Bracket TM-1342

Screen sizes
up to 42 inch
Maximum screw fixing centers for TV Screen
200 x 200mm
 VESA fixing system.
75 x 75
100 x 100
200 x 100
200 x 200
Tilt range
+15 to -15 deg.
Swivel range
+40 to -40 deg.
Maximum weight load
20Kg
Distance to wall
97mm
Wall foot dimensions
40 x 158mm
Weight
1.2Kg
