RJ45 CAT5e Copper Outdoor UTP Lead

Item Code : RJ45-5e-Cu-PE-UTP-BLK-40M


Lead length

Special Notice: Leads from 10 to 50 Meters, Prices from £7.00p

Special Notice: Leads from 10 to 50 Meters, Prices from £7.00p

Product Details

JW Hardy
  RJ45 Ethernet Equipment Lead.

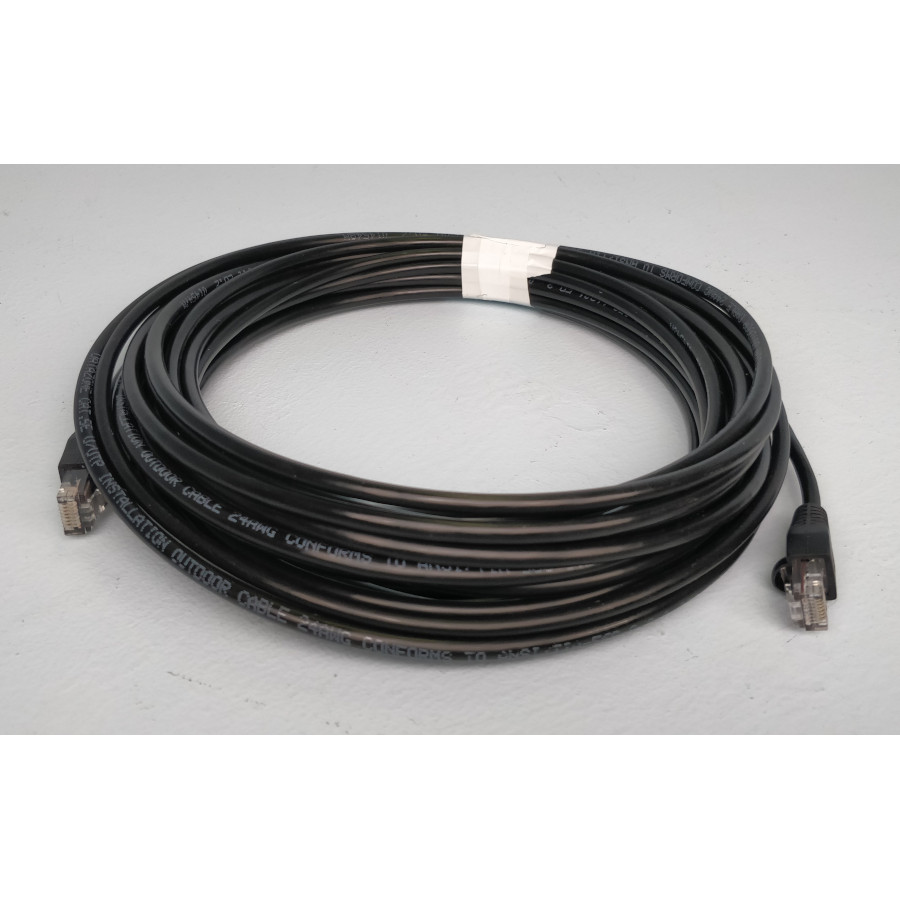

JW Hardy - RJ45 CAT5e Copper Outdoor UTP Lead

Item Code: RJ45PC-5e-Cu-PE-UTP

Brand: JW Hardy

Manufacturer: JW Hardy

Product Code: RJ45-5e-Cu-PE-UTP

Description

These leads are designed for Ethernet Cabling System, utilizing Category 5 Enhanced cables with solid copper core of size 24AWG in an External LDPE sheath.

These leads with solid copper cores are ideal for POE (Power over Ethernet application) for Ethernet Systems that need cable routes to run from building to building. Suitable for use with Catenarys, in ducts or on the side of buildings.

These leads are also suitable for systems of Analog CCTV ( note  Balum Transformers required).

These leads are pre-terminated to RJ45 Plugs, these leads exceed the TIA/EIA Enhanced Category 5 specifications.

These leads are supplied in convenient lengths of:- 10, 20, 30, 40 and 50 Meter lengths.


Features

  • 100 ohm
  • Low Density Polyethylene Sheath
  • Sheath Colour Black

Specification

Mechanical Specification
Conductors: 24 AWG;  Solid Copper
Sheath: 5mm diameter; LDPE
Sheath colour: Black
Electrical Specification
Characteristic
Impedance:
100 ohm
Capacitance: 52pF per Meter
Velocity Ratio: 0.65 (65%)
