Tenda M3 - Access Controller with 5 - Gigabit Ports
Item Code : Tenda - M3
Product Details
WiFi Controller
Tenda - Tenda M3 - Access Controller with 5 - Gigabit Ports
Item Code: Tenda - M3
Bar Code: 6932849429169
Brand: Tenda
Manufacturer: Tenda

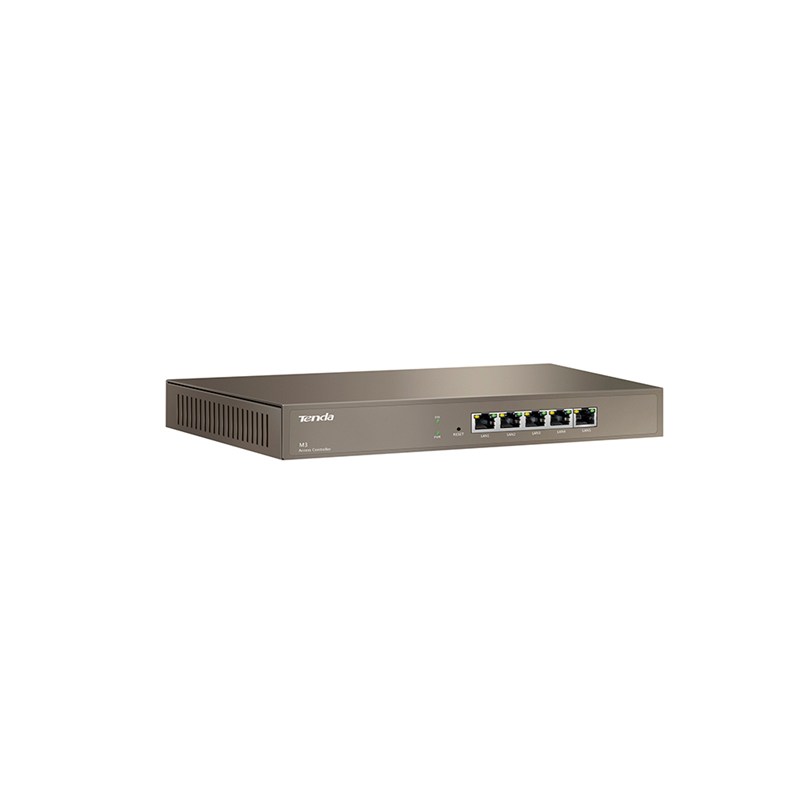

Tenda M3 - Access Controller with 5 - Gigabit Ports
Description
The M3 Access Point (AP) Controller is deployed in the branch network mode, and you simply connect the M3 to the core switch without changing your network topology. The M3 Access Point (AP) Controller can manage and monitor all the indoor AP such as the Tenda i6 Access Point units within your network. You can edit the description, SSID, channel, security, output power for all your APs in the LAN network. The built-in 5 gigabit Ethernet port provides faster data transfer.
Specification
| Specification | ||
|---|---|---|
| Maximum Manage number of Aps | 128 | |
| Dimension | 210*130*30mm | |
| Maximum Consumption | 9W | |
| Interface | 5*GE LAN Ports | |
| Button | 1*Reset | |
| Power Method | AC100～240V 50/60Hz,0.6A | |
| LED | SYS PWR | |
| Standard&Protocol | IEEE 802.3ab/3u/3 | |
| LAN Settings | Static IP | |
| DHCP Server for Aps | Support | |
| VLAN | Support | |
| System Tool | Time&Date Backup&Restore Configuration Reset to factory settings Reboot Access Controller Firmware Upgrade Administrator Management System Log | |
| Package Content | 1*Access Controller M3 1*Power Cord 4*Mats | |
| Temperature | Operating Temperature:-10℃~45℃ Storage Temperature:-30℃~70℃ | |
| Humidity | Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing | |
| Certification | FCC/CE/Rohs | |
