TEG1024D - Switch 24-Port Gigabit Switch

Item Code : Tenda - TEG1024D



Product Details

Tenda™   Gigabit Ethernet Switch

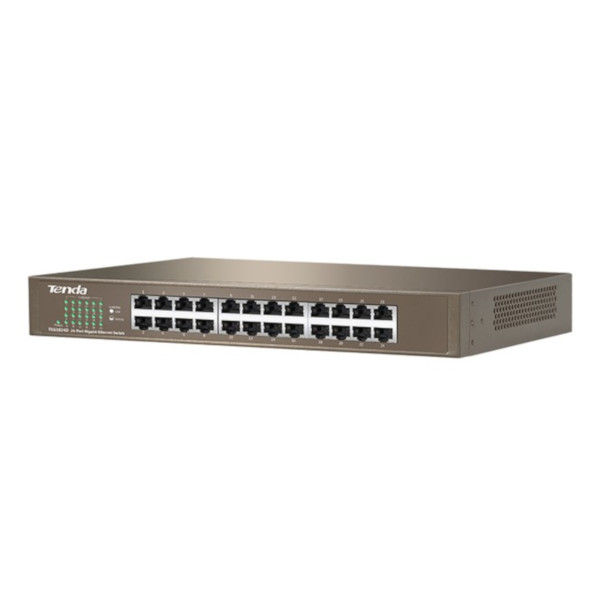

Tenda - TEG1024D - Switch 24-Port Gigabit Switch

Item Code: Tenda - TEG1024D

Brand: Tenda

Manufacturer: Tenda

Description

The Tenda TEG1024D 24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.

Specification

Standard&Protocol
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Indicator
24 x Link/Act
1 x Power
Interface
24*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)


Lightning Protection
6KV for power supply
6KV for all 24 RJ45 ports
Store & Forward
Yes
exchange capacity
48 Gbps
Packet Forwarding Rate
35.7Mpps
Mounting options
Desktop or 19inch Rack Mount ( Rack Mount Brackets included)
MAC Address Table
8K
Input Voltage
AC:100-240V~ 50/60Hz
Dimension
294 x 178 x 44mm 1U ( W x D x H )

Port Features
Standard:
    The switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.


Environment
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
