Audio Amplifier RM
Item Code : AA RM-120W
Amplifier Power
Mono Mixer with both Low & High impedance power Amplifier
adastra - Audio Amplifier RM
Item Code: Audio Amplifier RM
Brand: adastra
Manufacturer: adastra
Description

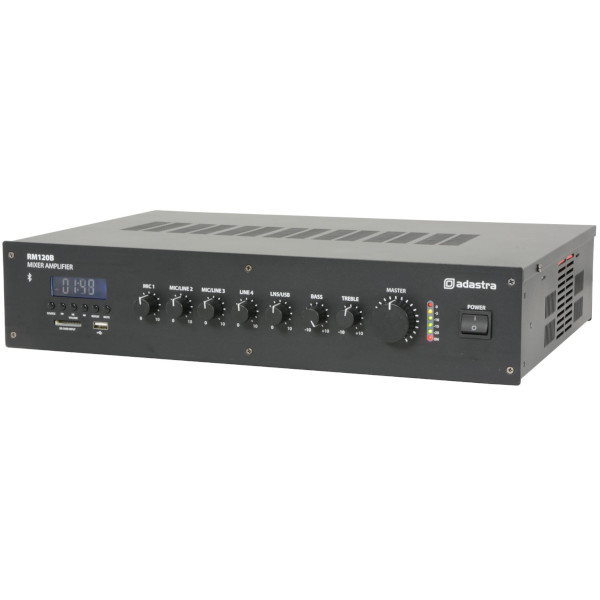

These rack-mountable 5-channel mixer amplifiers are intended for commercial installations.
The 5 input channels are of :-
- one XLR Microphone input with line power, a
- second input of Microphone or Line In, a
- third input of Microphone or Line In, a
- forth input of Line In and a
- fifth channel of intigrated Media player or Line Input.
The Media Player has inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via the integrated media player for hassle-free playback.
A switchable ‘voiceover’ feature that automatically lowers the background music volume when a signal is detected via microphone input 1.
The Amplifier has a Single Mono Output Channel of powers of 60 Watts RMS , 120 Watts RMS, 240 Watts RMS or 360 Watts RMS. Power can be delivered to a 100 Volt Line Speaker system or an 8 ohm Speaker System.
The 240Watt and 360Watt option amplifiers also includes an exclusively to 100 Volt Loud Speaker system a 4 way 100 Volt Loudspeaker switch.
We offer in store demonstration of this item.
Main Fetures
- 2U 19" rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable ‘voiceover’ feature
- Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
- 100V line or 8 ohm speaker output
- Option for mains or 24Vdc power
Specifications
| MECHANICAL | |
|---|---|
| Power supply | 110/240Vac, 50/60Hz (IEC) or |
| DC Power | 24Vdc (screw terminals) |
| Inputs | 1 x Mic XLR, 2 x mic/line jack, 2 x RCA line |
| Input sensitivity : mic 1 (balanced) | -53dBV |
| Input impedance : mic 1 | 5K ohm |
| Input sensitivity : line (unbalanced) | -15dBV (-18.5dBV line 5) |
| Input impedance : inputs 2-5 | 1K ohm |
| Line output | RCA |
| Weight |
1.6 Kg |
| Controls | Mic1, mic/line2+3, line4+5, bass, treble, master volume |
| Equalizer : bass | 100Hz +-10dB |
| Equalizer : treble | 10KHz +-10dB |
| Rear panel switches | Phantom, Vox, Mic/Line (2 + 3) |
| Phantom power | +20Volt (mic 1 input) |
| Audio source | Media Player for USB/SD player, FM tuner and Bluetooth receiver |
| Bluetooth version | 2.0 |
| THD | <1.0% |
| Dimensions | 433 x 320 x 89mm |
| Dowload |  Instruction manual |
| 60 Watt Option | |
| EAN Number | 5015972176481 |
| Weight 60 Watt Option | 5.98K gram |
 |
|
| 120 Watt Option | |
| EAN Number | 5015972176504 |
| Weight 120 Watt Option | 8.36K gram |
 |
|
| 240 Watt Option | |
| EAN Number | 5015972176528 |
| Weight 240 Watt Option | 9.62K gram |
| Output 240 Watt option | 4 way Output Switch On/Off only for 100Volt Loud Speaker System |
 |
|
| 360 Watt Option | |
| EAN Number | 5015972191644 |
| Weight 360 Watt Option | 12.68K gram |
| Output 360 Watt option | 4 way Output Switch On/Off only for 100Volt Loud Speaker System |
 |
|
