NVR 8channel, 80Mbps, 8MP, 8PoE

Item Code : TM-308 UNVR



Product Details

Technomate™   Network Video Recorder (NVR)

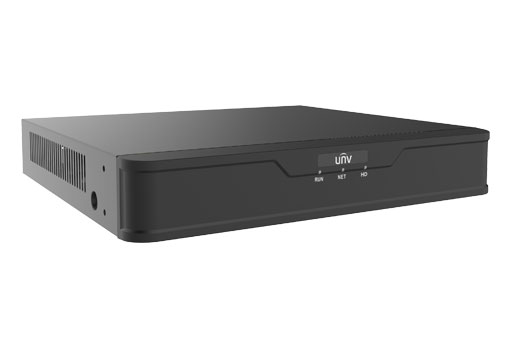

Technomate - NVR 8channel, 80Mbps, 8MP, 8PoE

Item Code: TM-308 UNVR

Brand: Technomate

Manufacturer: UniView

.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade

Specification

Video/Audio Input

IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA

Network

Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P,
UPnP,
NTP,
DHCP,
PPPoE

Video/Audio Output

HDMI Output 3840x2160/30Hz,
1920x1080p/60Hz,
1920x1080p/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
VGA Output 1920x1080p/60Hz,
1920x1080p/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
Recording Resolution 4K/8MP
5MP
4MP
3MP
1080p
960p
720p
D1
2CIF
CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3
4
5
7
9

Decoding

Decoding format Ultra 265
H.265
H.264
Liveview/Playback 4K/8MP
5MP
4MP
3MP
1080p
960p
720p
D1
2CIF
CIF
Capability 2 x 4k@30,
3 x 5MP@30,
4 x 4MP@30,
5 x 3MP@30,
8 x 1080p@30

HDD

SATA 1 SATA interface
Capacity up to 10TB for each disk

External Interface

Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,
Rear panel: 1 x USB3.0

PoE

Interface 8 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 108W in total (13.5W for each)
Supported Standard IEEE 802.3at,
IEEE 802.3af

General

Power Supply 52V DC
Power Consumption: ≤8 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F),
Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight 1kg (2.20 lb) without HDD
