2U 40 Watt 6 Zone, Mixer-Amp 5x6 with Mic/Line/USB/FM-Blue Tooth inputs. : adastra RM406A4
Item Code : RM406
Special Notice:
Special Notice:
Product Details
Zoned Mixer Amplifier
adastra - 2U 40 Watt 6 Zone, Mixer-Amp 5x6 with Mic/Line/USB/FM-Blue Tooth inputs. : adastra RM406A4
Item Code: RM406
Brand: adastra
Manufacturer: adastra
Description
Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers.
Each zone can be monitored from the front panel via a headphone output with volume control.
3 mic/line inputs,
1 aux input
1 integral input from USB/SD/FM player with Bluetooth receiver.
All 5 sources signals can be mixed & matrix switched to any of the 6 zones independently.
Mic 1 channel has a variable override and each microphone input has switchable phantom power.
A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.
Features
- Integral USB/SD/FM audio player
- Internal Bluetooth receiver
- 100V or 4/8 Ohms operation
- 6 independent output zones
- 3 mic/line and 1 auxiliary input
- Mic priority and chime functions
- Switchable +20V phantom power
- 24V mute contacts
- Monitor headphones output

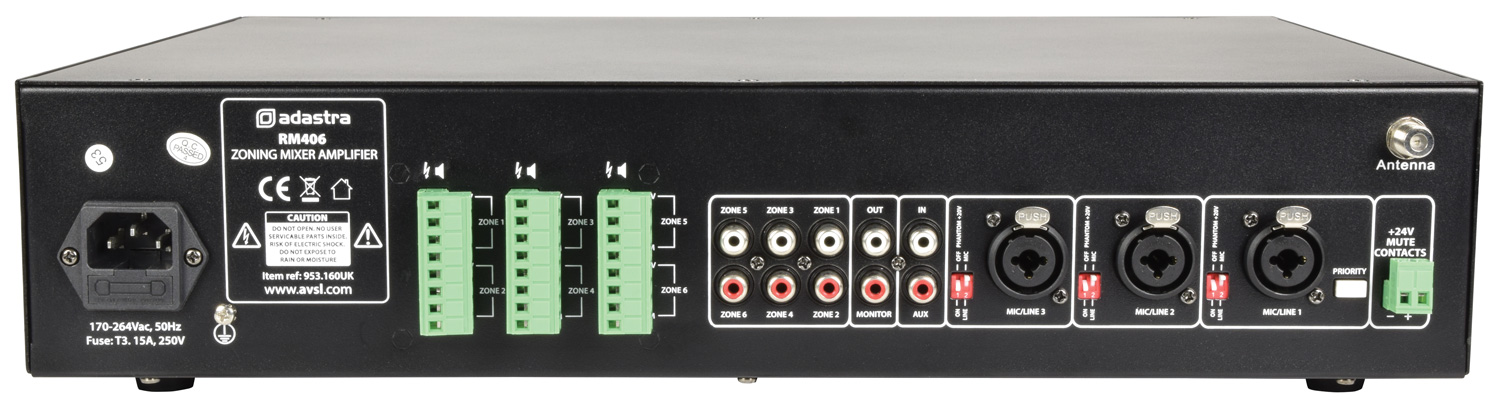

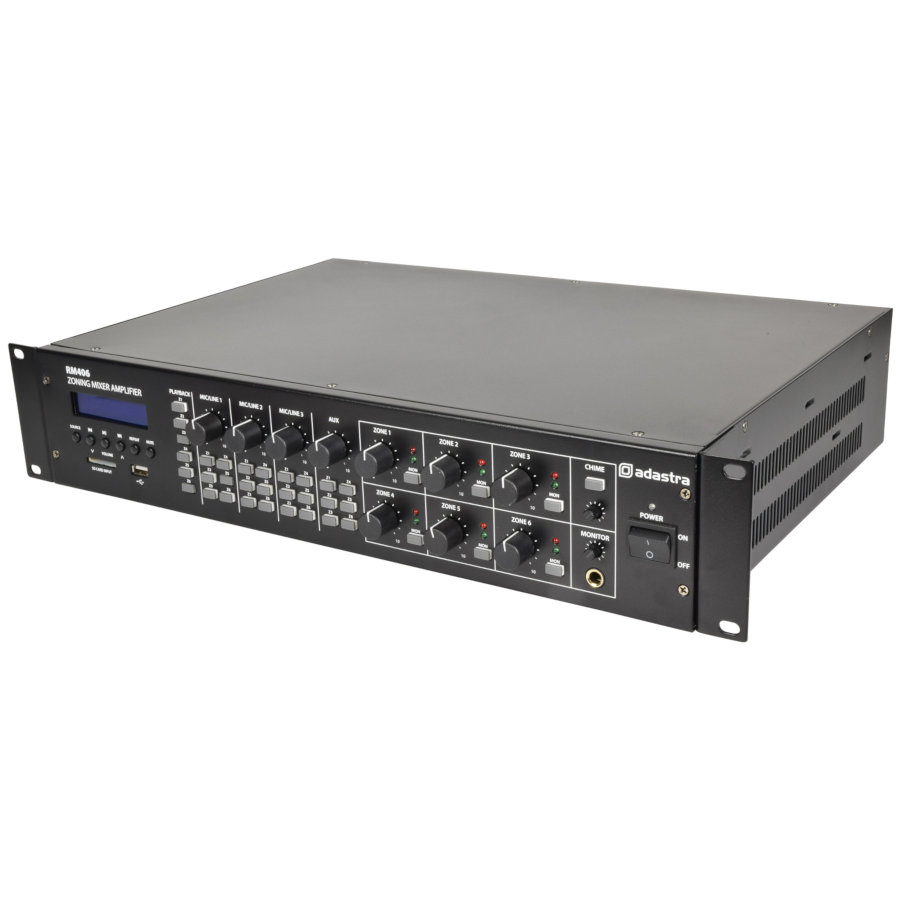

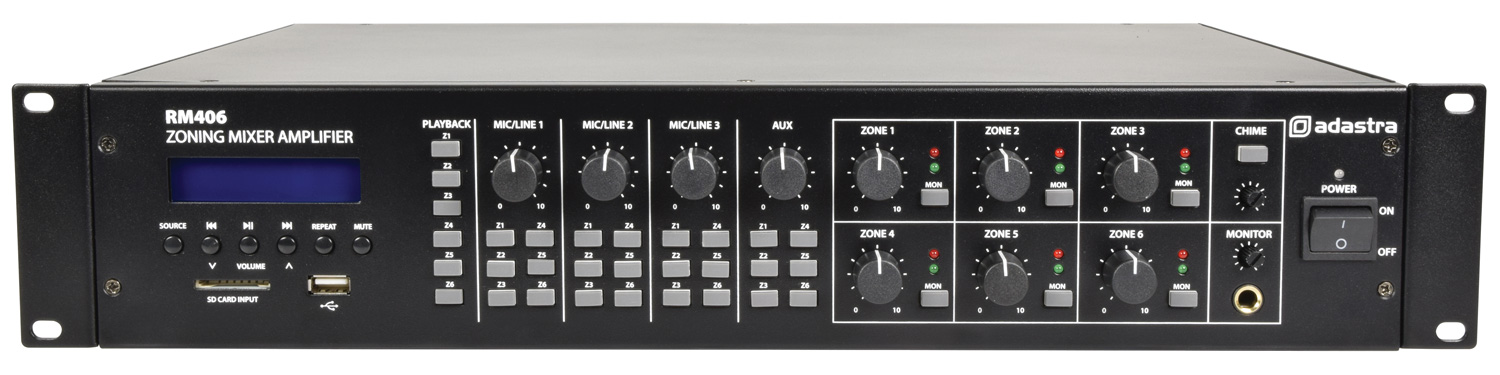

Images of RM406
|
|
Specification
| Power supply | 170-264Vac, 50Hz (IEC) | |
| Power output | 6 x 40W rms | |
| Amplifier : construction | Class D + transformer outputs | |
| Audio source | USB/SD/FM/BT audio player | |
| Inputs | 3 x mic/line (XLR/jack), auxiliary 2 x RCA | |
| Zone outputs: | line 6 x RCA (mono) | |
| Zone outputs: | speaker 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com | |
| Phantom power | +20V switchable to each XLR | |
| Monitor outputs | 6.3mm stereo phones, 2 x RCA line | |
| Mute | +24V relay contacts | |
| THD | <0.76% @ 1kHz | |
| Input impedance | 1k Ohms (mic/line) | |
| Input sensitivity | -11dB (line), -46dB (mic) | |
| SNR | 84dB (line), 82dB (mic) | |
| Bluetooth version | 2.0 | |
| Frequency response | 100Hz - 24kHz | |
| Dimensions | 433 x 89 x 403mm | |
| Weight | 11kg |
