16 Camera, 2..8MP DVR, K-216 APOC

Item Code : K-216 APOC



Special Notice: Note: Price does not include Hard Disk Drive (HDD)

Special Notice: Note: Price does not include Hard Disk Drive (HDD)

Product Details

Klear™   Digital Video Recorder 8 Mege Pixel

Klear - 16 Camera, 2..8MP DVR, K-216 APOC

Item Code: K-216 APOC

Brand: Klear

Manufacturer: Dahua


Description

This high performance APOC DVR supports up to 5MP APOC as well as up to 8MP CVI recording resolutions and an additional eight 8MP IP cameras.

• APOC

Klear's proprietary APOC technology delivers Audio, Video, Power & Data all over one

coaxial or CAT5e/6 cable on all channels! where cables used are full Copper


Note: APOC technology is only compatible with Klear APOC cameras.


APOC allows long distance transmission of 5MP 2.5K up to 300m via coaxial cable or up to

150m via CAT5e/6 cable* using K-100 POC baluns. If using CAT5e/6, you only need to use

1-pair inside the cable and the other 3-pairs can be used for 3 additional APOC cameras.



• Cautionary Note:

Price does not include Hard Disk Drive (HDD)

We Stock HDD of Seagate Manufacturer, Type SkyHawk in sizes of:-

1 Terabyte, 2 Terabyte, 3 Terabyte, 4 Terabyte, 6 Terabyte, 8 Terabyte.

Please see Hard Disk Drives (HDDs)

Features

  • APOC on all channels: Audio, Video, Power & Data over 1-BNC
  • H.265+/H.265 dual-stream video compression
  • 5in1: CVI, TVI, AHD, CVB-S, IP
  • Smart Motion Detection
  • Face Detection
  • Video Analytics
  • 4K UHD HDMI Output
  • 2 SATA up to 10TB each

Detailed Veiw for connections to K-216 APOC

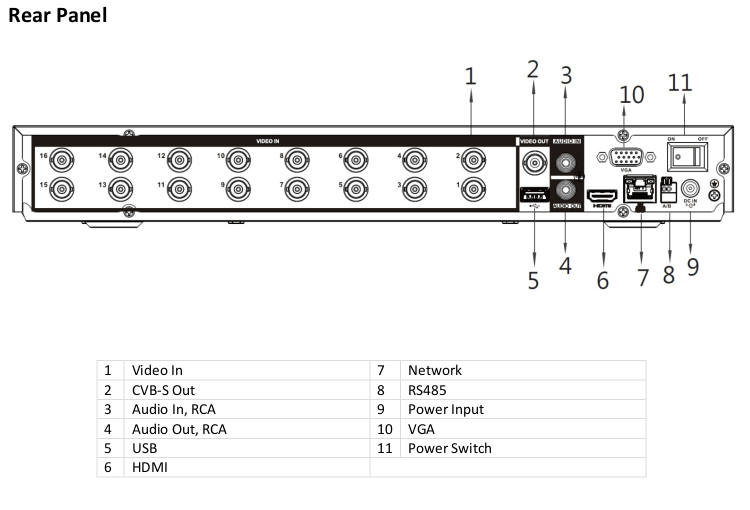

Rear View of K-216 APOC

Specification

Video and Audio Input
BNC Input 16
CVI Input 8MP 4K,
6MP,
5MP,
4MP,
1080P@25/30fps,
720P@50/60fps,
720P@25/30fps
TVI Input 5MP,
4MP,
1080P@25/30,
720P@25/30fps
AHD Input 5MP,
4MP,
1080P@25/30,
720P@25/30fps
CVB-S Input PAL/NTSC
IP 8 IP Cameras (up to 8MP each), in addition to 16 BNC
APOC All Channels: Audio/Video/Power/Data
Audio In 1 RCA
Two-way Talk Reuse Audio In
Video and Audio Output
HDMI 3840×2160,
2560×1440,
1920 × 1080,
1280 × 1024,
1280 × 720
VGA 1920 × 1080,
1280 × 1024,
1280 × 720
CVB-S Yes
Audio Out 1 RCA
Two-way Talk Reuse Audio Out
Recording
Compression H.265+
H.265
H.264+
H.264
Resolution 4K,
6MP,
5MP,
4MP,
3MP,
4M-N,
1080P,
720P,
960H,
D1,
CIF
Record Rate Main stream 4K(1~7fps),
6MP(1~10fps),
5MP(1~12fps),
4MP/3MP(1~15fps)
4M-N
1080P
720P
960H
D1
CIF(1~25/30fps)
Record Rate Sub stream 960H(1fps–15fps),
D1/CIF(1fps–25/30fps)
Bit Rate 32 kbps–6144 kbps Per Channel
Audio Compression AAC(only for channel 1),
G.711A,
G.711U,
PCM
Audio Sample Rate 8 KHz,
16 bit per Channel
Audio Bit Rate 64 kbps per Channel
Hard Disk
SATA 2 SATA interface for 2HDD
Capacity Up to 10TB each
Network
Interface 1 RJ-45 1000 Mbps
Protocols ONVIF,
HTTP,
HTTPS,
TCP/IP,
IPv4/IPv6,
UPnP,
RTSP,
UDP,
SMTP,
NTP,
DHCP,
DNS,
IP Filter,
PPPoE,
DDNS,
FTP
External Dongle Wi-Fi,
3G/4G supported
Push Notification Supported
Remote Connections 128
Auxiliary interface
USB 1 x USB 2.0
1 x USB 3.0
RS485 1 x RS485
General
Power Supply DC 54V
Power Consumption (without hard disk) ≤20W
Operating Conditions -10°C to +55°C
(+14°F to +131°F),
10%–90%RH
Weight 1.70kg
(3.75lb)
Dimensions 325mm×287mm×53mm
(14.8"x11.3"x2.1")
(W x D x H)
