8 Camera, 2..8MP DVR, K-208 APOC
Item Code : K-208 APOC
Special Notice: Note: Price does not include Hard Disk Drive (HDD)
Special Notice: Note: Price does not include Hard Disk Drive (HDD)
Digital Video Recorder 8 Mege Pixel
Klear - 8 Camera, 2..8MP DVR, K-208 APOC
Item Code: K-208 APOC
Brand: Klear
Manufacturer: Dahua
Description
This high performance APOC DVR supports up to 5MP APOC as well as up to 8MP CVI recording resolutions and an additional eight 8MP IP cameras.
• APOC
Klear's proprietary APOC technology delivers Audio, Video, Power & Data all over one
coaxial or CAT5e/6 cable on all channels! where cables used are full Copper
Note: APOC technology is only compatible with Klear APOC cameras.
APOC allows long distance transmission of 5MP 2.5K up to 300m via coaxial cable or up to
150m via CAT5e/6 cable* using K-100 POC baluns. If using CAT5e/6, you only need to use
1-pair inside the cable and the other 3-pairs can be used for 3 additional APOC cameras.
• Cautionary Note:
Price does not include Hard Disk Drive (HDD)
We Stock HDD of Seagate Manufacturer, Type SkyHawk in sizes of:-
1 Terabyte, 2 Terabyte, 3 Terabyte, 4 Terabyte, 6 Terabyte, 8 Terabyte.
Please see Hard Disk Drives (HDDs)
Features
- APOC on all channels: Audio, Video, Power & Data over 1-BNC
- H.265+/H.265 dual-stream video compression
- 5in1: CVI, TVI, AHD, CVB-S, IP
- Smart Motion Detection
- Face Detection
- Video Analytics
- 4K UHD HDMI Output
- 1 SATA up to 10TB each

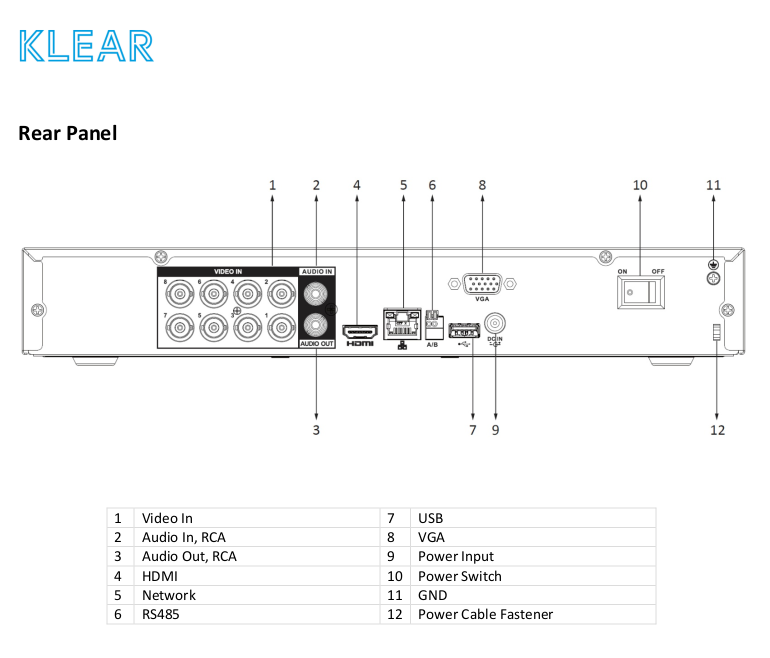

Detailed Veiw for connections to K-208 APOC
|
Specification
| Video and Audio Input | ||
|---|---|---|
| BNC Input | 8 | |
| CVI Input | 8MP 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | |
| TVI Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | |
| AHD Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | |
| CVB-S Input | PAL/NTSC | |
| IP | 4 IP Cameras (up to 8MP each), in addition to 8 BNC | |
| APOC | All Channels: Audio/Video/Power/Data | |
| Audio In | 1 RCA | |
| Two-way Talk | Reuse Audio In | |
| Video and Audio Output | ||
|---|---|---|
| HDMI | 3840×2160, 2560×1440, 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA | 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| CVB-S | No | |
| Audio Out | 1 RCA | |
| Two-way Talk | Reuse Audio Out | |
| Recording | ||
|---|---|---|
| Compression | H.265+ H.265 H.264+ H.264 | |
| Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF | |
| Record Rate Main stream | 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps) 4M-N 1080P 720P 960H D1 CIF(1~25/30fps) | |
| Record Rate Sub stream | 960H(1fps–15fps), D1/CIF(1fps–25/30fps) | |
| Bit Rate | 32 kbps–6144 kbps Per Channel | |
| Audio Compression | AAC(only for channel 1), G.711A, G.711U, PCM | |
| Audio Sample Rate | 8 KHz, 16 bit per Channel | |
| Audio Bit Rate | 64 kbps per Channel | |
| Hard Disk | ||
|---|---|---|
| SATA | 1 SATA interface for 1HDD | |
| Capacity | Up to 10TB each | |
| Network | ||
|---|---|---|
| Interface | 1 RJ-45 1000 Mbps | |
| Protocols | ONVIF, HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP | |
| External Dongle | Wi-Fi, 3G/4G supported | |
| Push Notification | Supported | |
| Remote Connections | 128 | |
| Auxiliary interface | ||
|---|---|---|
| USB | 1 x USB 2.0 1 x USB 3.0 | |
| RS485 | 1 x RS485 | |
| General | ||
|---|---|---|
| Power Supply | DC 53V | |
| Power Consumption | (without hard disk) ≤15W | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 10%–90%RH | |
| Weight | 1.35kg (2.98lb) | |
| Dimensions | 325mm×255mm×55mm (12.8"x10"x2.2") (W x D x H) | |
