In Door Passive 6.5 inch Speaker 8ohm or 100V Black : Adastra BC6V-B

Item Code : BC6V-B



Product Details

adastra™   100 Volt Line Wall Loud Speakers

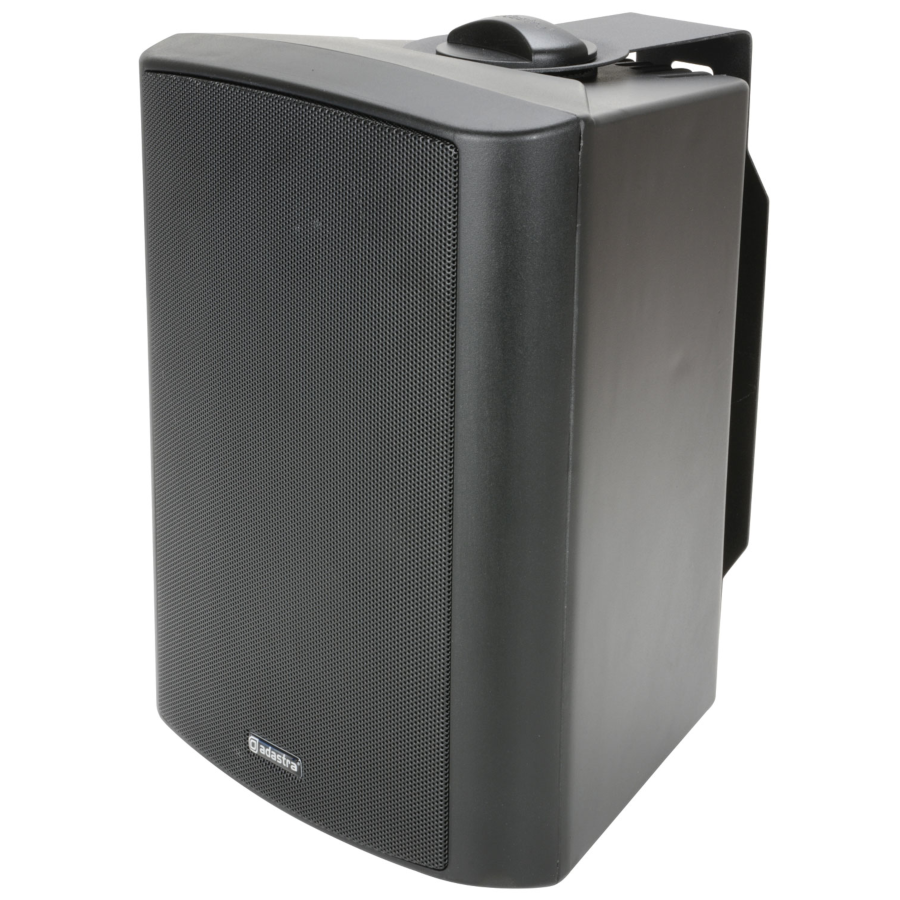

adastra - In Door Passive 6.5 inch Speaker 8ohm or 100V Black : Adastra BC6V-B

Item Code: BC6V-B

Brand: adastra

Manufacturer: adastra


Description

BC Series - 100V Indoor Speakers

A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications

Features

  • 2 way speaker system with crossover network
  • Rotary selector switch for 100V line tappings or 8 Ohms operation
  • Wall mounting bracket supplied
  • Alternative M6 threaded mounting points
  • Spring terminal connection
  • Supplied singly
  • Colour White
  • Supplied in box and sold in singles

Technical drawing BC6V-B

Technical drawing with dimensions of speaker BC6V-B
Technical drawing of speaker adjustment BC6V-B

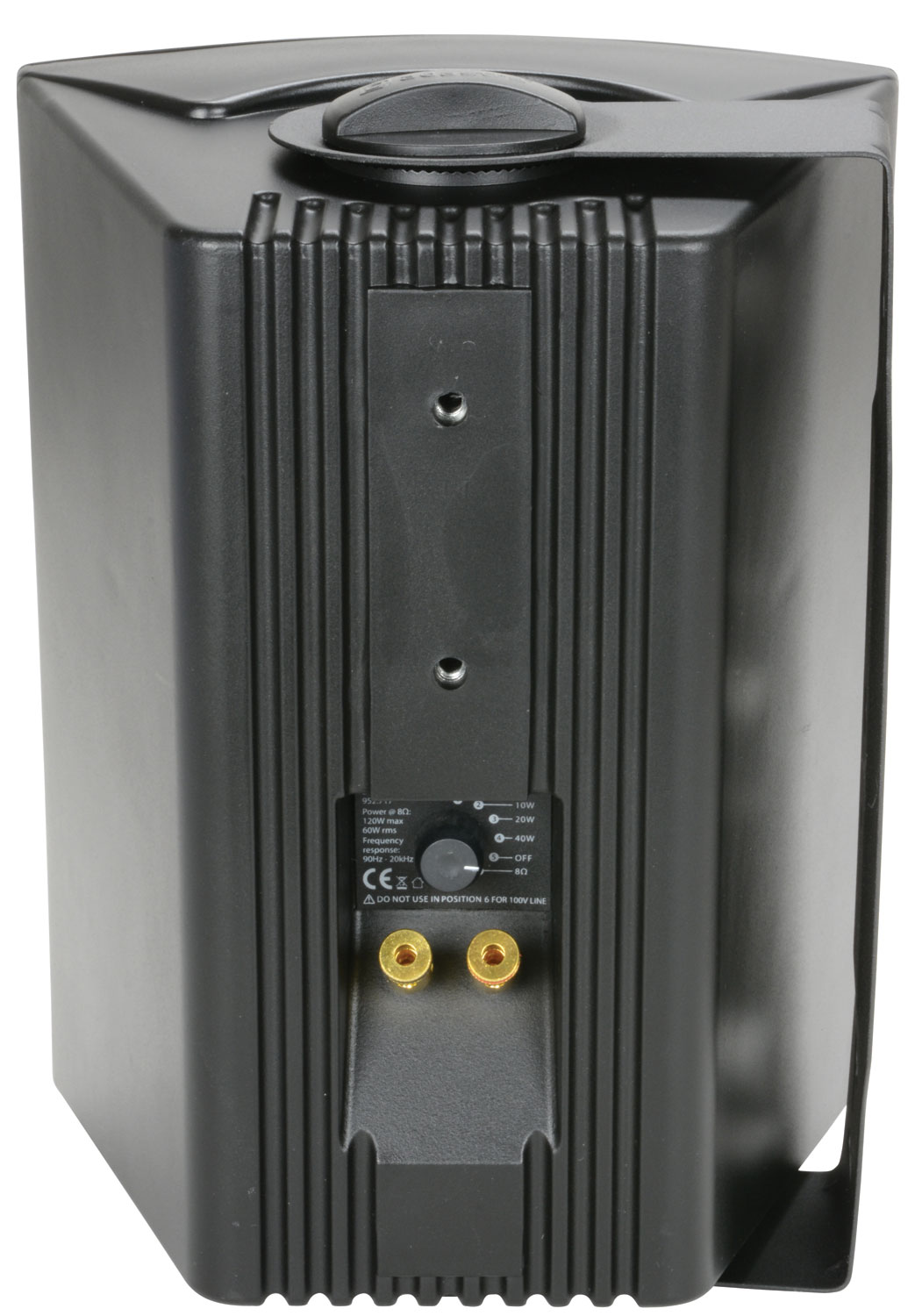

Rear view BC6V-B

Specification

Colour Black
Woofer 165mmØ (6.5 inch) reinforced paper cone
Tweeter 25mm (1'') balanced dome
Frequency response 90Hz - 20kHz
Power handling : max. 120W
Power handling : rms 60W
SPL @ 1W/1m 89dB
Tappings 5/10/20/40W + 8 Ohms
Impedance : 100V 250, 500, 1k, 2k Ohms
Dimensions 220 x 280 x 210mm
Weight 3.08kg
Package type Gift Box
Package dimensions 246 x 328 x 218mm
Package quantity 1 unit (one individual speaker)
